How To Calculate Wavelength From Angle Of Diffraction. D = angle of diffraction. Thus the angle of diffraction θ for each spectral line is determined.

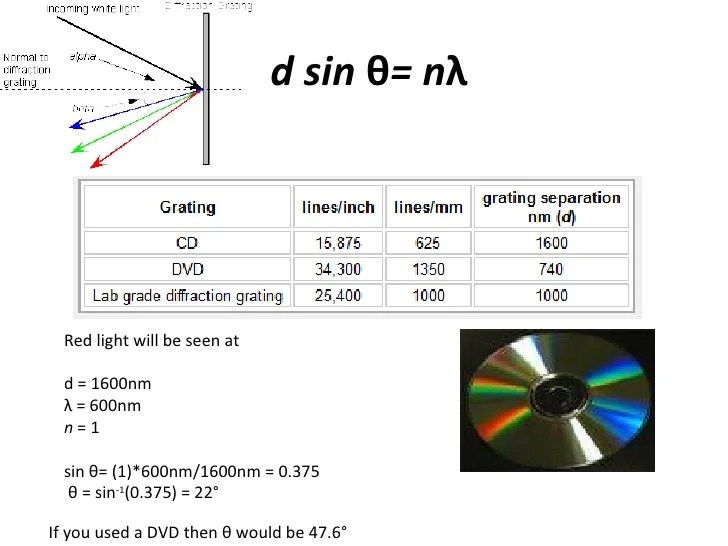

Diffraction from www.slideshare.net

Each slit diffracts the light waves that pass through it. In this example, we are being asked to calculate the de broglie wavelength of an electron given its. D sin θ = nλ.

Source: www.scienceandmathsrevision.co.uk

The diffraction grating disperses the light, so that the relationship between the diffraction angle θ and the wavelength λ of the light is given by the equation. The formula for wavelength can be written in its relationship to velocity and frequency as follows:

Source: pressbooks.bccampus.ca

Given that, the order, n = 2, the angle of deviation. Where, λ = wavelength of crystal diffraction.

Source: www.tessshebaylo.com

Each slit diffracts the light waves that pass through it. Likewise, longer wavelengths give rise to larger diffraction angles at constant line grating spacings.

Source: pressbooks.bccampus.ca

Glancing angle = ig = 25 o, refractive index = μ = 1.5, velocity of light in air = c a = 3 x 10 8 m/s The separation being so small makes the angle large.

Source: collegephysicsanswers.com

The blue lines) is still collimated and will be imaged at a single point on the. Where m is an integer that refers to the order of diffraction.

Source: www.pinterest.com

Given that, the order, n = 2, the angle of deviation. Use this angle to calculate the wavelength !!(recall that d = 1670 nm).

Source: answers.yahoo.com

The formula for wavelength can be written in its relationship to velocity and frequency as follows: The blue lines) is still collimated and will be imaged at a single point on the.

Source: www.slideshare.net

Θ is the angle to maxima; The integer n is referred to as the diffraction order.

Source: www.sciencefacts.net

Repeat steps c and d for two or three more lines in the spectrum. Grating element ‘d’ is calculated as:

Source: blogs.bu.edu

According to the equation, the size of the diffraction angle decreases as the line grating space intervals increase. A ray of light is incident on a glass slab making an angle of 25° with the surface.

Source: sites.google.com

Where θ is the angle observed. In the diagram below the light entering from the left diffracts to fill the area on the right.

Source: www.slideserve.com

According to the equation, the size of the diffraction angle decreases as the line grating space intervals increase. D is the grating spacing.

Source: sites.google.com

Now you can put these value and find the result for wavelength (lambda). According to the equation, the size of the diffraction angle decreases as the line grating space intervals increase.

Source: www.slideshare.net

In the diagram below the light entering from the left diffracts to fill the area on the right. The angle and groove density determine the transmitted wavelength.

Source: studylib.net

(a similar formula for destructive interference exists.) from either formula, however, it's clear that as the wavelength increases, the angle of diffraction increases. Θₐ is the angle between initial.

If You Throw White Light Through A Grating It Will Spread The Light Out, Diffract It.

L = angle of incidence. Θₐ is the angle between initial. Choose the brightest lines you observe.

Take The Average And Find The Wavelength.

Where m is an integer that refers to the order of diffraction. Λ is the wavelength of light; Θ is the angle to maxima;

Read The Question Carefully And Determine What Is Being Asked.

The effect of wavelength can be demonstrated by illuminating the line grating with white light (containing a mixture of all. The diffraction grating equation is a * λ = d * sin (θₐ) where λ is the incident ray wavelength. The diffraction grating equation is a * λ = d * sin (θₐ) where λ is the incident ray wavelength.

(A Similar Formula For Destructive Interference Exists.) From Either Formula, However, It's Clear That As The Wavelength Increases, The Angle Of Diffraction Increases.

For a 300 lines per mm grating d = (1/300) mm. To calculate the wavelength of the other prominent lines of mercury. If the incident light ray is perpendicular to grating you can use the diffraction grating formula to find the direction in which the rays are diffracted.

The Spectrometer’s Wavelength Coverage Is Determined By The Groove Frequency Of The Grating, Which Is Also A Key Factor In The Spectral Resolution.the Wavelength Coverage Of A Spectrometer Is Inversely Proportional To The Dispersion Of The Grating Due To Its Fixed Geometry.

Repeat steps c and d for two or three more lines in the spectrum. Where d is the spacing between two slits. By measuring the angle at which these colours appear for various orders of diffraction, the wavelength of different colours could be calculated using the formula, here, n is the number of rulings per metre in the grating and m is the order of the.
